Harley-Davidson XR1200 (Orange) - Specification

2010 Harley-Davidson XR1200

Harley-Davidson is a vehicle that's been around a long time, a legendary vehicle. Strong, fast, form a very beautiful and elegant so tempting every vehicle to have lovers. 2010 Harley-Davidson XR1200 is one of the history of Harley-Davidson's latest yag for the year 2010. Has a 1200cc engine for a V-Twin model is a typical American. Although this is an existing vehicle long but the ability and the technology used continues to grow, and the changes and improvements are always made to make it perfect for the rider. One of the technologies used are combustion system that uses injection system, is intended to channeling energy into the engine becomes much easier and optimal. With these systems the optimum power and engine power will be maximal.

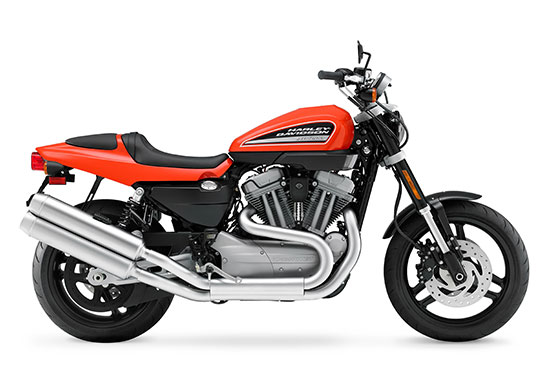

2010 Harley-Davidson XR1200

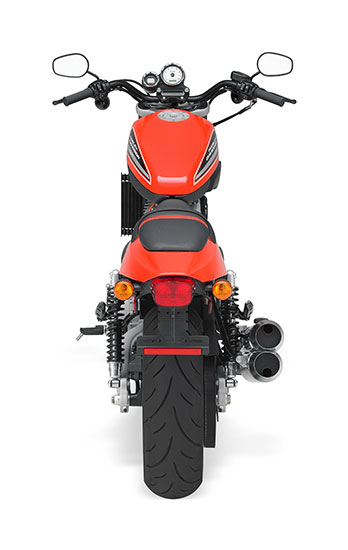

2010 Harley-Davidson XR1200

2010 Harley-Davidson XR1200 - Specifications
USA MSRP: Vivid Black $10,799, Solids $11,089 USD
Canada MSRP: $See Dealer CDN

Engine
  • Engine3 Air-cooled, Evolution® with oil cooled heads
  • Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
  • Bore x Stroke 3.50 in. x 3.81 in. (88.90 mm x 96.82 mm)
  • Displacement3 73.30 cu. in. (1200 cc)
  • Compression Ratio 10.0:1
  • Fuel System9
  • Electronic Sequential Port Fuel Injection (ESPFI)
  • Air Cleaner Paper cartridge type
  • Lubrication System Dry-sump

Drivetrain
  • Primary Drive Chain, 57/34 ratio
  • Final Drive Belt, 68/28 ratio
  • Clutch Multi-plate, wet
  • Transmission 5-speed

Gear Ratios (overall):
  • 1st 10.782
  • 2nd 7.702
  • 3rd 5.728
  • 4th 4.748
  • 5th U.S. 4.071

Chassis
  • Frame Mild steel tubular frame; circular sections; cast junctions
  • Swingarm Aluminum Cast
  • Front Forks 43 mm Inverted
  • Rear Shocks Coil-over; preload dual-adjustable

Wheels4: Black, 3-spoke Cast Aluminum
  • Front 18 in. x 3.5 in. (457.20 mm x 88.90 mm)
  • Rear 17 in. x 5.5 in. (431.80 mm x 139.70 mm)

Brakes:
  • Caliper Type Dual 4-Piston, fixed front, single-piston floating rear
  • Rotor Type (diameter x width): Patented, uniform expansion rotors
  • Front 11.50 in. x .20 in. (292.10 mm x 5.08 mm)
  • Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)

Suspension Travel:
  • Front Wheel 4.92 in. (124.97 mm)
  • Rear Wheel 3.50 in. (88.90 mm)

Weight:
  • As Shipped 562 lbs. (254.92 kg)
  • In Running Order 580 lbs. (263.09 kg)
  • Gross Vehicle Weight Rating 1000 lbs. (453.60 kg)
  • Gross Axle Weight Rating
  • Front 350 lbs. (158.76 kg)
  • Rear 650 lbs. (294.84 kg)

Dimensions
Length 85.40 in. (2169.16 mm)
  • Overall Width 36.50 in. (927.10 mm)
  • Overall Height 45.10 in. (1145.54 mm)

Seat Height:
  • Laden2 29.20 in. (741.68 mm)
  • Unladen 30.50 in. (774.70 mm)

Ground Clearance 5.80 in. (147.32 mm)
  • Rake (steering head) 29.3°
  • Fork Angle 27.8°
  • Trail 5.12 in. (130.05 mm)
  • Wheelbase 59.80 in. (1518.92 mm)

Tires (Dunlop® Harley-Davidson Series, radial blackwall front and rear. Dunlop® Qualifier Tires):
  • Front - D209 120/70ZR18 M/C
  • Rear - D209 180/55ZR17 M/C

Fuel Capacity 3.50 gal. (13.25 L) (warning light at approximately 0.50 gal.)
  • Oil Capacity (w/filter) 2.80 qts. (2.65 L)
  • Transmission Capacity 1 qts. (0.95 L)

Performance
  • Engine Torque5 (per SAE J1349):
  • North America 73.91 ft. lbs. @ 4000 rpm (100.21 Nm @ 4000 rpm)

Lean Angle (per SAE J1168):
  • Right 39°
  • Left 40°

Key Features :

With styling inspired by the legendary flattrack champion XR750, which XR1200 Sportster ® ™ is set to excel in all aspects of road performance in the hands of a capable, aggressive drivers.

Born in dirt tracks and drag strips sandy 1950s, Harley-Davidson ® Sportster represents the essence of Motorcycles without a hitch. Today's Sportster combines soulful style with a flat torque delivery and distinctive voice of the American V-Twin engine.

Among the most-affordable Harley-Davidson models, Sportster motorcycles offer a low, comfortable seat, smooth clutch effort.
  • Aggressive riding position with mid-mount controls
  • 5-speed transmission
  • Disc brakes
  • Evolution V-Twin powertrain with Electronic Sequential Port Fuel Injection (ESPFI)
  • Optional Harley-Davidson® Smart Security System with hands-free security fob

  • Rubber-mounted powertrain to reduce vibration
  • Black, 3-spoke cast aluminum wheels
  • Brushed, straight-shot, high-performance exhaust with dual mufflers
  • Cast aluminum swingarm
  • High-performance Dunlop® Qualifier® radial tires
  • Wide, low-rise handlebar

Showa® rear shock absorbers and Showa® 43mm inverted front forks
Dual front disc brakes
1200cc Evolution® V-Twin engine with downdraft fuel injection, precision-cooled cylinder heads and large-capacity oil cooler
Large tachometer centered on handlebar with compact, digital speedometer

Fuel Economy7
(EPA urban/highway test) 38/53 mpg (6.19/4.43 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 12-amp/hour, 200 cca
Charging Single-phase, 30-amp system (357W @ 13.5V, 2000 rpm, 405W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system6 (optional)
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)

Color Options
Solids
  • Vivid Black
  • Brilliant Silver Denim
  • Mirage Orange Pearl
