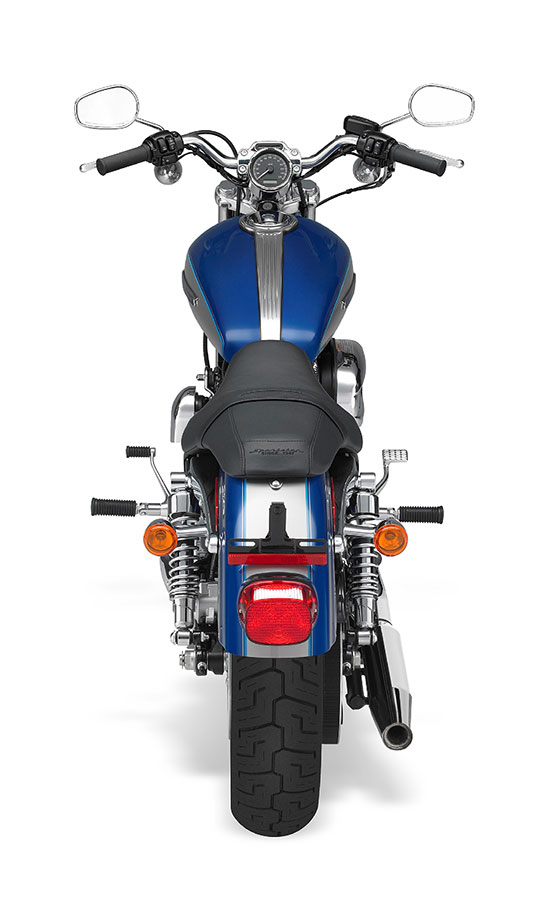

Harley-Davidson Sportster 1200 Custom XL1200C Motorcycle Custom - Specification


2010 Harley-Davidson Sportster 1200 Custom XL1200C an upscale vehicle with sophisticated technology, Harley-Davidson has a 1200cc engine with the engine of evolution tiper (V-Twin). As for the display, Harley-Davidson offers the type of color with Vivid Black and Red Hot Sunglo. View a stylish and sparkling like jewels, made from a mixture of chrome parts and mixed with 21-inch front wheel. Character and a beautiful design in accordance with the typical American lifestyle. Among the most-affordable Harley-Davidson models, Sportster motorcycles offer a low, comfortable seat, smooth clutch effort.

In 2010 Harley-Davidson Sportster 1200 Custom XL1200C, the company offers a variety of new features inherent in these vehicles, such as for features such as:
  • Forward-mounted foot controls and passenger footpegs
  • Handlebar-mounted electronic speedometer
  • 5-speed transmission
  • Optional Chrome, Aluminum Profile laced wheels
  • Optional Original Equipment Custom Color paint program
  • Optional Harley-Davidson ® Smart Security System with hands-free security fob
  • Evolution ® V-Twin powertrain with Electronic Sequential Port Fuel Injection (ESPFI)
  • Rubber-mounted powertrain to reduce vibration
  • staggered dual exhaust
  • Disc brakes



2010 Harley-Davidson Sportster 1200 Custom XL1200C - Specifications
USA MSRP: Vivid Black $9,999, Solids $10,289, Two-Tones $10,499, Custom Colors $10,699

Engine
Engine3 Air-cooled, Evolution®
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.50 in. x 3.81 in. (88.90 mm x 96.82 mm)
Displacement3 73.30 cu. in. (1200 cc)
Compression Ratio 9.7:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Paper cartridge type
Lubrication System Dry-sump

Drivetrain
Primary Drive Chain, 57/38 ratio
Final Drive Belt, 68/29 ratio
Clutch Multi-plate, wet
Transmission 5-speed

U.S. Gear Ratios (overall):
  • 1st 9.315
  • 2nd 6.653
  • 3rd 4.948
  • 4th 4.102
  • 5th 3.517

Brakes:
Caliper Type Dual-piston front, single-piston rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front 11.50 in. x .20 in. (292.10 mm x 5.08 mm)
Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)

Suspension Travel:
Front Wheel 5.69 in. (144.53 mm)
Rear Wheel 2.12 in. (53.85 mm)

Chassis
Frame Mild steel, tubular frame; circular sections; cast junctions
Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Front Forks 39 mm
Rear Shocks Coil-over; preload dual-adjustable

Wheels5 (Chrome, Profile Laced Aluminum option):
Front Chrome, Laced Steel 21 in. x 2.15 in. (533.40 mm x 54.61 mm)
Rear Chrome, Slotted Disc Cast Aluminum 16 in. x 3 in. (406.40 mm x 76.20 mm)

Performance

Engine Torque6 (per SAE J1349):
North America 79 ft. lbs. @ 4000 rpm (107.11 Nm @ 4000 rpm)

Lean Angle (per SAE J1168):
  • Right 29°
  • Left 31°

Dimensions

Length 90.30 in. (2293.62 mm)
  • Overall Width 32.70 in. (830.58 mm)
  • Overall Height 45.70 in. (1160.78 mm)

Seat Height:
Laden2 26.50 in. (673.10 mm)
Unladen 28.0 in. (711.20 mm)
Ground Clearance 4.40 in. (111.76 mm)
Rake (steering head) 30.1°
Fork Angle 30.1°
Trail 4.70 in. (119.38 mm)
Wheelbase 60.40 in. (1534.16 mm)

Tires (Dunlop® Harley-Davidson Series, blackwall):
Front - D402F MH90-21 54H
Rear - D401 150/80B16 71H

Fuel Capacity 4.50 gal. (17.03 L) (warning light at approximately 1 gal.)
Oil Capacity (w/filter) 2.80 qts. (2.65 L)
Transmission Capacity 1 qts. (0.95 L)

Weight:
As Shipped 562 lbs. (254.92 kg)
In Running Order 589 lbs. (267.17 kg)
Gross Vehicle Weight Rating 1000 lbs. (453.60 kg)
Gross Axle Weight Rating
Front 335 lbs. (151.96 kg)
Rear 665 lbs. (301.64 kg)

Fuel Economy7
(EPA urban/highway test) 42/57 mpg (5.60/4.13 L/100 km)

Electric
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 12-amp/hour, 200 cca

Charging Single-phase, 30-amp system (357W @ 13.5V, 2000 rpm, 405W max power @ 13.5V)

Starting 1.2 kW electric with solenoid shift starter motor engagement

Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system8 (optional)

Color Options
Solids
Vivid Black
Red Hot Sunglo

Two-Tones
Scarlet Red/Vivid Black
Flame Blue Pearl/Brilliant Silver Pearl

Custom Colors
Merlot Sunglo/Cherry Red Sunglo
White Ice Pearl/Black Ice Pearl

U.S. MSRP
Vivid Black $9,999
Solids $10,289
Two-Tones $10,499
Custom Colors $10,699
